Original Cabinet

Original Cabinet
It is possible to specify the outside-dimension freely.

Original Cabinet

We produce the optimal cabinets to store the electrical equipment according to your requests.
Please feel free to contact us about your requests, estimate, etc..

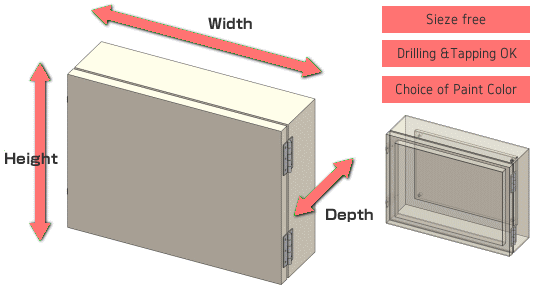

1. Size free: You can specify the external dimensions.
2. We process drilling and tapping.
3. It is possible to specify a coating color.

 Feature

Cabinet

1. Free outside-dimensions.

While the ready-made products by major companies are the provisions, we will produce the original cabinets of your designated external dimensions. (Please specify in 10 millimeter.)

2. We process drilling and tapping.

By specifying in advance, we process drilling and tapping. We will help with reducing cumbersome additional machining time after the ready-made products purchase.
Processable tap M size M2.6 M3 M4 M5 M6 (We recommend 2.0 mm or more of board-thicknesses for M5 and M6).
* It is possible to support with the weld nut, too. (Excluding M2.6).
Drilling shape example Circle, Oval, Square, Rectangle, Hook slot or Keyhole, Double D-cut, and other irregular holes

3. It is possible to specify a coating color.

Four colors of beige, cream, white, and black as a standard paint colors are available. (Powder coating will be applied.)

About other paint color, melamine baking, urethane paint, we will correspond on demand, so please contact us.
beige cream white black
Beige
(All gloss)
Munsell 5Y7/ 1
JPMA   25-70B
Cream
(All gloss)
Munsell 2.5Y9/1
JPMA   22-90B
White
(All gloss)
Munsell N9.5
JPMA   N-95
Black
(Half gloss)
Munsell N2.0
JPMA   N-20
Please note that there is a case to be different from the actual colors depending on the monitor and browser environment.

 Product list

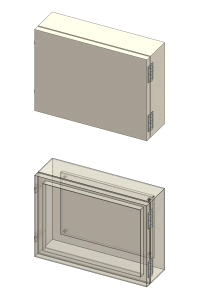

 Control box

It is a sheet metal cabinet with outside hinges and the catch clips.
(Changing to the inner hinge is also possible. Please contact us.)
Control box
Material  Iron
Board-thickness Door: 1.6mm Body: 1.6mm
Installation location The interior compartment
The mounting base Iron (1.6mm)
Remarks Two catch clips
Two hinges
* It is possible to change the material and the board-thickness and so on.

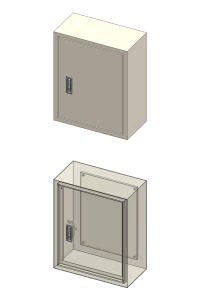

 Cabinet for board

This is the narrowing down door structure cabinet for the board.
control box
Material Iron
Board-thickness Door: 1.6mm Body: 1.6mm
Installation location The interior compartment
The mounting base Iron (1.6mm)
Remarks One carriage-handle
Two hinges
Two cushion rubbers
* It is possible to change the material and the board-thickness and so on.
* We estimate the price each time after specifying the outside-dimensions, hole drilling and coating color. Please contact us.

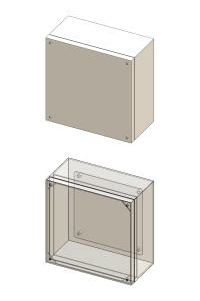

 Terminal box Type-A

It is the refined design terminal BOX which puts a door in the gap on the body opening.
Terminal box Type-A
Material Iron
Board-thickness Door: 1.2mm Body: 1.6mm
Installation location The interior compartment
The mounting base Iron (1.6mm)
Remarks
* It is possible to change the material and the board-thickness and so on.
* We estimate the price each time after specifying the outside-dimensions, hole drilling and coating color. Please contact us.

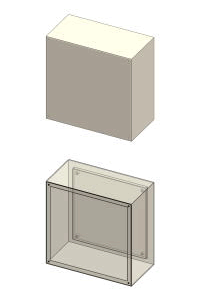

 Terminal box Type B

It is the simple terminal box which the flat lid plate is fixed with four screws.
ターミナルBOX Bタイプ
Material  Iron
Board-thickness Door: 1.6mm Body: 1.6mm
Installation location The interior compartment
The mounting base Iron (1.6mm)
Remarks Flat lid plate (Fixed with four points by taps)
* It is possible to change the material and the board-thickness and so on.
* We estimate the price each time after specifying the outside-dimensions, hole drilling and coating color. Please contact us.

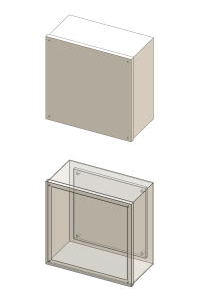

 Terminal box Type C

We added four foldings to the flat lid plate of terminal BOX Type B.
* Note: The lid becomes slightly larger than the body outline.
コントロールBOX
Material  Iron
Board-thickness Door: 1.6mm Body: 1.6mm
Installation location The interior compartment
The mounting base Iron (1.6mm)
Remarks Flat lid plate (Fixed with four points by taps)
* It is possible to change the material and the board-thickness and so on.
* We estimate the price each time after specifying the outside-dimensions, hole drilling and coating color. Please contact us.

 Various options

We offer you multiple size options.
Besides, we also correspond to the sheetmetal parts (adding into drawings, breaker board, door switch bracket, closing plate, etc.).
Please contact us.

Weld nut


溶接ナット

Stud


スタッドボルト

Stud boss


スタッドボス

Ground terminal


アース端子

 About the order


Orders and inquiries of this product, please contact Sanmei Co. Ltd.

Sanmei Website

 For additional machining

It is possible to instruct additional machining of hole taps on six sides of the body doors (front, left and right sides, ceiling, bottom and backface surfaces) at the time of the order.
We do not claim the additional fee.
Additional processing to intermediate-plate is excluded. We apply M3-M6 for the tap processing.
We are prepared to add nuts and bosses and so on with the additional cost.

 The goods price

We estimate the price each time according to the specifications.

 Delivery date

The delivery of the standard cabinet basically takes about two weeks.
Please consult each time in the case of more than 10 formulas.

 About the returning

Because all the products are made-to-order products, we will not accept the returning of the products in principle.
In case of defective products or being damaged during delivery, we will respond at our burden.

 Cancellation Policy

After an order is fixed, it is not possible to cancel. Please order on enough consideration.
* For more inquiries and questions, please feel free to contact us.
